Y Block-powered vehicle owners must know the history of the ignition/carburetor systems.
What is the Big Deal?
In a post last summer entitled "Ignition Upgrade: ACCEL 2020 Points Eliminator Kit for the Y Block Ford" I briefly walked through the history of the FoMoCo V8 ignition systems manufactured in the 1950's and 1960's. As large a following as the Y Block engine has and as committed as Crown Victoria and Thunderbird owners can be, many will continue to live in ignorance. Some practice outright denial.
When the Y Block was introduced in 1954, each distributor was especially matched to its carburetor (a Holley 94 two barrel or a Holley 4000 four barrel variant). It is important to remember that Ford carried this setup through the end of the 1956 model year. All Y Block distributors for those three years were specifically VACUUM ADVANCE ONLY, and each carburetor was designed with passage ways and ports and a spark control valve to feed vacuum from the engine to the advance diaphragm attached to the distributor. For 1954, 55, and 56, these Y Block distributors had no mechanical advance.
In 1956, the 292/312 distributors matched with a single Holley 4000 had dual vacuum advance.
If you leave your car or truck untouched from the factory and only replace parts with NOS or matching aftermarket pieces then you will be just fine as long as things are kept in operational order as the shop manual outlines. The BIG DEAL comes in when owners want to either swap in a new distributor (FoMoCo 1957-64 or aftermarket) or swap in a new carburetor (any design from 1957 to the present day).
Replacing the Carburetor and Keeping the Load-O-Matic
Trouble arises when you decide to install a carburetor manufactured from 1957 to the present day and leave your original 1954-56 distributor in place. Your engine will run of course, but the vacuum signal to the distributor will be much lower than what the Load-O-Matic advance diaphragm requires. Your engine will always seem sluggish. This is becuase your advance plate will not move enough to increase the ignition timing as RPM and engine load increases. As we all know, ignition advance is critical to engine performace as RPM and load varies under acceleration. When upgrading the carburetor, always install a distributor that has mechanical advance at the very least. Beyond the 1957-64 FoMoCo distributors, there are a plethora of modern offerings in the aftermarket. Even owners of the 1955-57 Thunderbirds that require the drive for the tachometer certainly have options.
Even the dual vacuum advance 1956 distributors had no mechanical advance.
Replacing the Load-O-Matic and Keeping the Carburetor
While simply replacing the original distributor with an updated version that would include mechanical advance seems like an option to just drop in and go, there is one particular issue that will need to be addressed. If you run a vacuum line from your original Holley 94 or Holley 4000, you need to know that your ported vacuum signal will be quite strong and will give way too much advance to your distributor. The best fix involves a vacuum signal modification that can be made to either carburetor. My friend Ted Eaton has a couple of excellent articles on this procedure. The Holley 94 article and the Holley 4000 article are certainly thorough in procedure. However, at the request of subscribers, I made a video that shows the steps in sequence, the tools you will need, and what the end result provides.
The tool layout includes a few drill bits, taps, and some JB Weld or moldable lead.

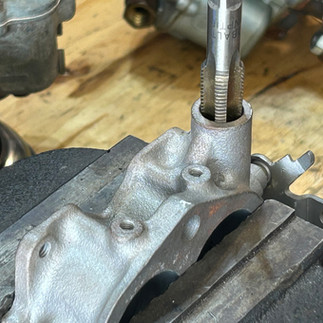

Even the most novice of mechanics can handle the Holley 94 modification.
What about Intake Manifolds?
At the request of subscribers to both the website and my YouTube channel, I have produced a couple of videos that help to answer questions. Both videos concern upgrading the intake manifold; the first is for those who desire to keep their Holley 4000 intake and simply use a modern carburetor. The second concerns a little bit of Y Block history, FoMoCo intake manifolds that are commonly desired, and also a few examples of aftermarket pieces. Suprisingly, this video received over 7,000 views in under two weeks of being posted.
Swapping out a Y Block Ford V8 intake manifold is easy, but there are precautions to take.
It does seem that many owners of 1954-56 Ford passenger cars and trucks desire to ditch the original Holley 94 or Holley 4000 family of carburetors in favor of a "modern" unit. I would imagine that much of the reason concerns familiarity with off-the-shelf offerings from Holley, Summit, Edelbrock, or other manufacturers. Then too, I often see complaints on social media of either aftermarket aluminum manifolds not being readily available, the cost of an ECZ-9425 B intake being too expensive, etc. Whatever the case, there are adapter plates that will mate the "A" intake manifold and most 1957+ carburetors together. I review this completely in the video above and show how to mount said adapter. In addition, references to the distributor problem are made and the solution of a distributor with BOTH vacuum and mechanical advance is given.

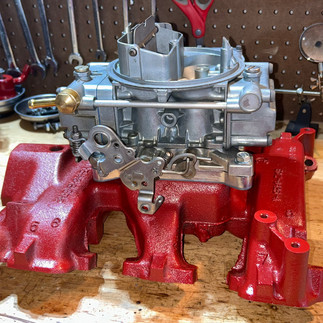

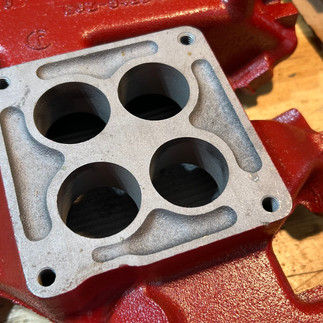

Mounting a "modern" carburetor to an ECZ-9425 A intake can be done with an adapter plate.
